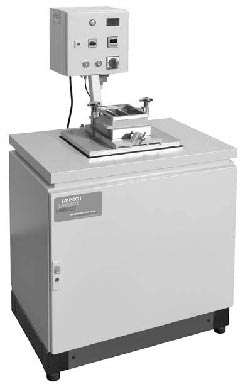

Vibrating Table for 3 Gang Mould to EN 196-1

Vibrating Table for 3 Gang Mould to EN 196-1

Vibrating Table for 3 Gang Mould to EN 196-1
complete with switch box and digital timer
CodeCE232
Other StandardsEN196-1
Approx. Weight (kg)200
Click to save page as PDF Save Page to PDF
or
Call Impact +44 (0)1294 602626

Vibrating Table Supplied with universal clamp for fastening a three-gang mould with filling hopper, switchbox fastened onto the stand and a digital timer.

Peak-to-valley value 0.4 to 1.0 mm
Frequency 50 Hz
Dimensions W x D x H 800 x 700 x 850 (1450) mm
Weight approx. 200 kg
Power supply 230V 50Hz
