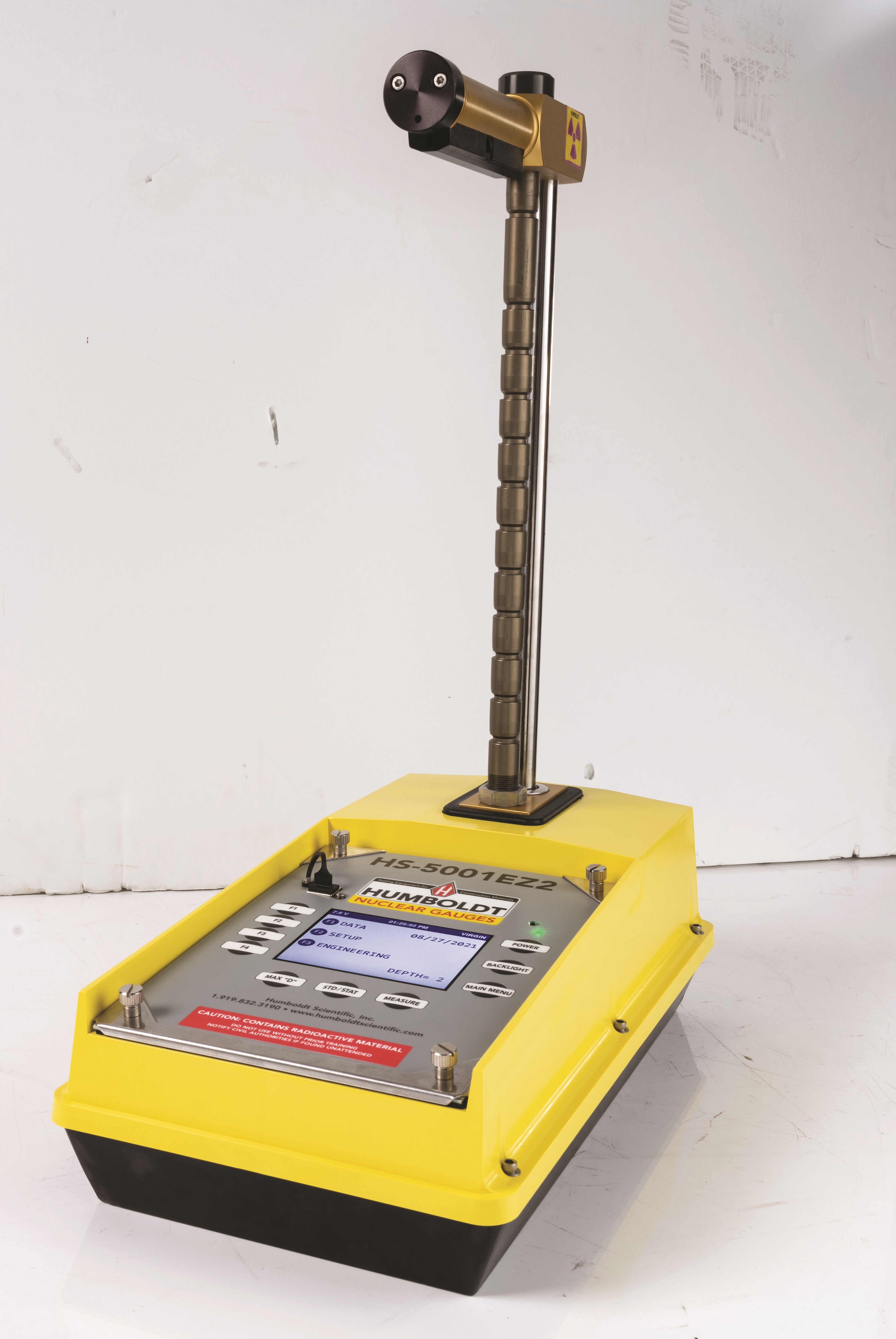

Moisture/Density Gauge EZ Series

Moisture/Density Gauge EZ Series

Moisture/Density Gauge EZ Series
measures up to 300mm (12 inches) in 25mm (1 inch) increments
CodeMH320
Other StandardsASTM D6938, ASTM D2950, ASTM C1040, AASHTO T310
Tariff90248090
Click to save page as PDFSave Page to PDF
or
Call Impact +44 (0)1294 602626

Easy to operate, easy to power and easy to service. The EZ gauge features a menu-driven control panel with easy-to-use, built-in test routines and auto features, making testing a quick and accurate operation. It also features our innovative trigger release handle that eliminates pinched fingers while providing smooth operation.
The EZ gauge provides a single gauge solution to density and moisture measurements.
The EZ’s versatility allows it to measure density through direct transmission and backscatter modes, as well as including thin lift and trench modes, as well as moisture determinations. The gauge uses an advanced micro-processor-based technology to provide highly-accurate measurements of density and moisture that are automatically computed for direct readouts of wet density, dry density, moisture content, percent of moisture, percent of compaction (Proctor or Marshall), void ratio and air voids.

Standards

ASTM D6938 D2950, C1040
AASHTO T310.

The gauge is calibrated by the Five-block calibration method.

• Menu-driven operation—direct readings in engineering units
• AA batteries eliminate charging—6-12 month battery life
• Easy operation handle with positive latch
• Modular design, simplifies repairs
• Automatic depth sensor

Easy to Operate

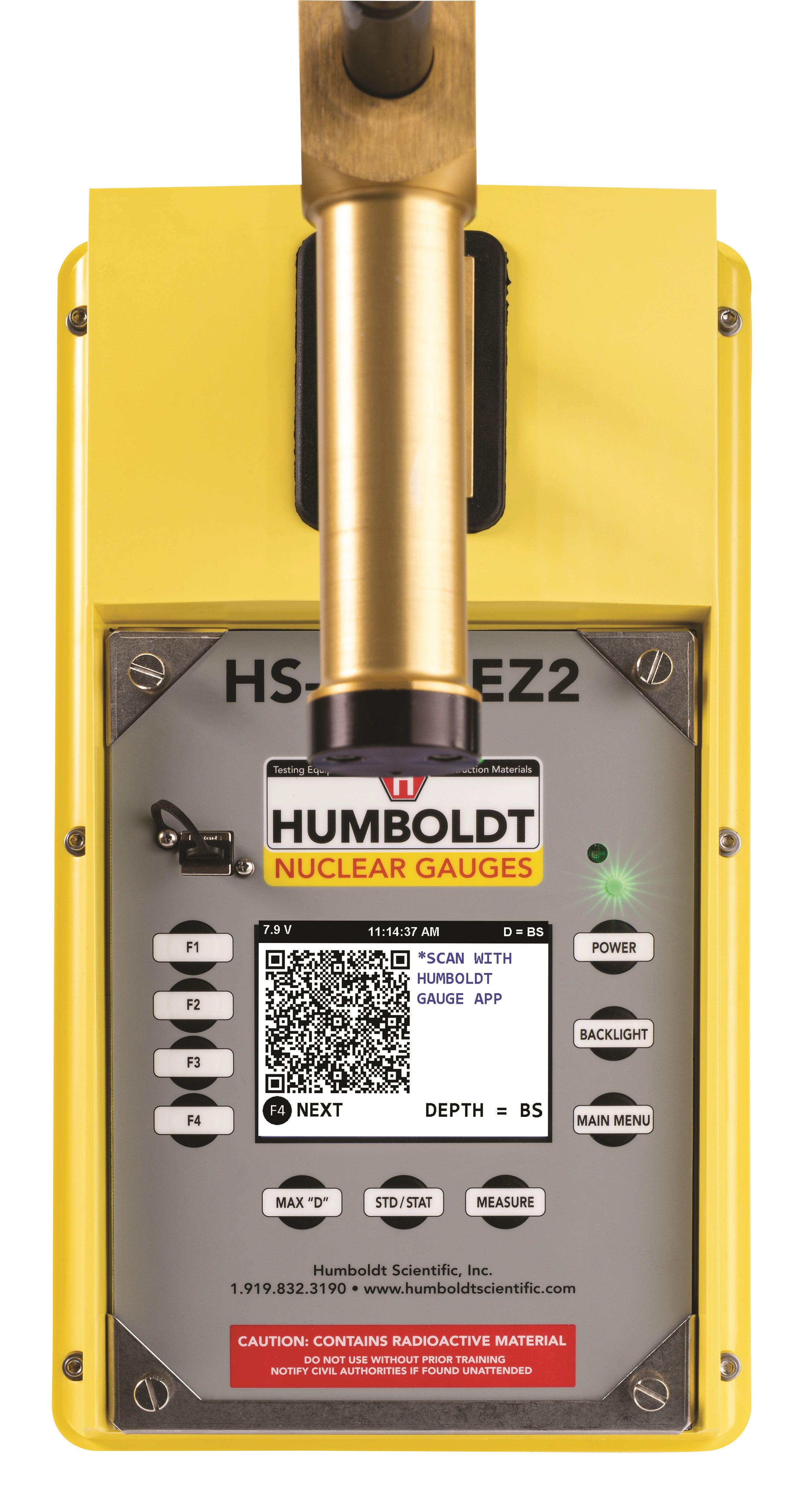

The EZ gauge features a menu-driven control panel with easy-to-use, built-in test routines and auto features, making testing a quick and accurate operation.

Easy to Power

The EZ is powered by six standard AA alkaline batteries, which provide up to 2000 hrs of service. No chargers are needed and you can buy batteries almost anywhere.

Easy to Service

The EZ gauge also uses a modular design, which allows it to be serviced in the field, if ever necessary. With this gauge, you don’t have to send it back to the factory for repairs, we’ll send you the necessary components and walk you through any repair procedure.

Supplied complete with

Gauge, Reference Standard, Source and Case Certification, Wipe Test Kit, Rod Guide/Scraper Plate, Drill Pin, Four Pound Hammer, Pin Extraction Tool, Zippered Accessory Case, Transit Case, Radiation Safety Manual and Operator’s Manual.

Measurement:    Density at 125 pcf (2000 kg/m3)

Direct    Transmission, 6 (150mm)

15 seconds    (Fast)

1 minute (Std.)

4 minutes (Slow)

Precision, pcf (kg/m3)

±0.5 (8)

±0.25 (4)

±0.13 (2)

Chemical Error, pcf (kg/m3)

±1.0 (16)

±1.0 (16)

±1.0 (16)

Surface Error, pcf (kg/m3)

-0.5 (8)

-0.5 (8)

-0.5 (8)

Measurement Depth: 2 to 12 (50    to 300mm)

Backscatter,    3.5 (88mm)

15 seconds    (Fast)

1 minute (Std.)

4 minutes (Slow)

Precision, pcf (kg/m3)

±1.0 (16)

±0.5 (8)

±0.25 (4)

Chemical Error, pcf (kg/m3)

±2.5 (40)

±2.5 (40)

±2.5 (40)

Surface Error, pcf (kg/m3)

-3.0 (48)

-3.0 (48)

-3.0 (48)

Measurement Depth: 3.5 (88mm)

Moisture at    10pcf (160kg/m3)

15 seconds    (Fast)

1 minute (Std.)

4 minutes (Slow)

Precision, pcf (kg/m3)

±0.5 (8)

±0.25 (4)

±0.13 (2)

Surface Error, pcf (kg/m3)

-0.25 (4)

-0.25 (4)

-0.25 (4)

Measurement Depth:    4-8 (100 to 200mm)


Radiological

Gamma Source

Material, Type and Amount:

Cs-137, 370MBq (10mCi)

Special Form Registration:

USA/0634/S

ANSI and ISO Class:

Below 7000 S/N USA/0634/S
Above 7000 S/N USA/0356/S

Neutron Source

Material, Type and Amount:

Am-241: Be, 1.48GBq (40mCi)

Neutron Yield:

90 Knps ±10%

Special Form Registration:

USA/0632/S

ANSI and ISO Class:

Below 7000 S/N USA/0632/S
Above 7000 S/N CZ/1009/S

Source

Type:

Sealed Source, Special Form

Housing:

Stainless Steel, Double    Encapsulated

Surface Dose Rates

18.7 mrem/hr Maximum
(Neutron and    Gamma)

Transit (shipping) Case

DOT 7A, Type A, Yellow II Label,    O.2 TI

Electrical

Displays:

4 lines x 20 alphanumeric with backlit liquid crystal

Timer Stability:

0.01%

Power Supply Stability:

0.10%

Power Source:

Six alkaline AA-size batteries

Power Consumption:

Active—6.5mA Battery Life—1400    hours

Power Protection:

Main Batteries—Circuit Breaker
Regulated Supplies—Short Circuit Proof

Low Battery    Condition:

LOBAT Alarm and Auto Shut-off for low and dead battery conditions

Battery Life Remaining:

Automatically Estimated at Power-up    by activating TEST routine

Mechanical

Operating Temperature:

14 to 158°F (-10 to 70°C) ambient,    347°F (175°C) Material Surface

Storage Temperature:

-70 to 185°F (-55 to 85°C)

Humidity:

98% without condensation,    Rain-Resistant Construction

Vibration:

0.1 (2.5mm) at 12.5 Hz

Materials:

Shielding:

Tungsten Powder Alloy

Source Rod:

440C Stainless steel, Induction,    heat treated to 55 Rockwell C

Gauge Base:

Computer-Machined 6061-T6 Aluminium,    Hard-Coated and Teflon Impregnated

Post and Frame:

Computer-Machined 6061-T6 Aluminium,    Anodized for Anti-corrosion

Index Rod:

7075 aluminium, Hard Coated and    Teflon Impregnated

Top Shell:

Injection-Moulded Noryl with  Integral Colour

Bearing:

Relieved Bronze with Neoprene Seals

Screws/Fittings:

Stainless Steel and Brass

Dimensions/Weight

Gauge:

Dimensions (base):

400 x 220 x 140mm

Handle Height:

450 or 550mm

Weight:

13.6kg

Reference Standard:

Dimensions:

350 x 200 x 75mm

Weight:

4.5kg

Transit Case:

Dimensions:

787 x 356 x 495mm

Weight:

11.8kg

Accessory Case (loaded):

Dimensions:

500 x 250 x 125mm

Weight:

7.3kg

Total Shipping Weight:

41kg

Radioactive Materials

Radioactive Material

Chemical/Physical Form

Maximum Amount

Cesium-137

Sealed Source

Not to exceed 11 millicuries per    source

Americium-241:Be

Sealed Source

Not to exceed 44 millicuries per    source


ClickClick to view a PDF file of the User Guide



A user guide is available to download from the Impact web site www.impact-test.co.uk
